HMJ7-1 Datasheet, Mixer, WJ Communication

HMJ7-1 Features

  • Mixer x Greater than +34 dBm IIP3 x 77 dBc 2x1 Spur Rejection in IF Band x RF 1000 - 2000 MHz x LO 1000 - 2000 MHz x IF 10 - 1000 MHz x +24 dBm LO Drive Level x +5V Bias (40 mA) x SMT J-Lead

PDF File Details

Part number:

HMJ7-1

Manufacturer:

WJ Communication

File Size:

259.41kb

Download:

📄 Datasheet

Description:

High dynamic range fet mixer. The HMJ7-1 is a high dynamic range GaAs FET mixer. This active broadband mixer realizes a typical third order intercept point of +34

Datasheet Preview: HMJ7-1 📥 Download PDF (259.41kb)

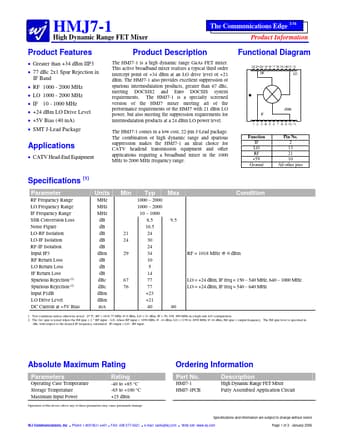

Page 2 of HMJ7-1 Page 3 of HMJ7-1

HMJ7-1 Application

  • Applications x CATV Head-End Equipment Product Description The HMJ7-1 is a high dynamic range GaAs FET mixer. This active broadband mixer realizes
