ML401, 1.7-2.2 GHz High IP3 Mixer

www.DataSheet4U.com ML401 Product .
The ML401 high linearity upconverter or downconverter combines a passive GaAs MESFET mixer with an integrated HBT LO driver in a low-cost leadfree/gre.

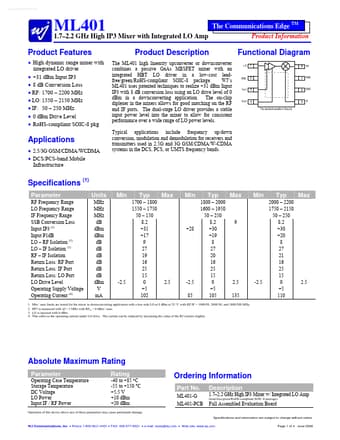

datasheet Preview Page 1 from Datasheet4u.com

ML401_WJCommunication.pdf

ML401 Datasheet Preview — Preview of ML401 PDF

Datasheet Details

Part number:

ML401

Manufacturer:

WJ Communication

File Size:

327.43 KB

Description:

1.7-2.2 GHz High IP3 Mixer

Features

* High dynamic range mixer with integrated LO driver
* +31 dBm Input IP3
* 8 dB Conversion Loss
* RF: 1700
* 2200 MHz
* LO: 1550
* 2150 MHz
* IF: 50
* 250 MHz
* 0 dBm Drive Level
* RoHS-compliant SOIC-8 pkg The

Applications

* include frequency up/down conversion, modulation and demodulation for receivers and transmitters used in 2.5G and 3G GSM/CDMA/W-CDMA systems in the DCS, PCS, or UMTS frequency bands. Functional Diagram LO 1 8 RF 7 GND 6 GND 5 IF The backside paddle is Ground. GND 2 Vcc1 3 Vcc2 4 Applicatio
