SF1110, SF1109 (SF1109 - SF1114) PCS Receive Band Filters 1850-1910 MHz

Description

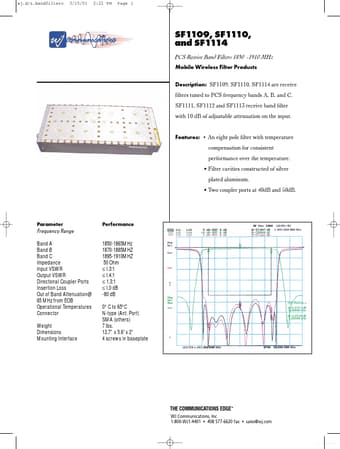

wj.d/s.bandfilters 3/15/01 2:22 PM Page 1 SF1109, SF1110, and SF1114 PCS Receive Band Filters 1850 -1910 MHz Mobile Wireless Filter Products Descr.
SF1109, SF1110, SF1114 are receive ﬁlters tuned to PCS frequency bands A, B, and C.

📥 Download Datasheet

SF1110 Datasheet Preview — This datasheet PDF includes multiple part numbers: SF1110, SF1109. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SF1110, SF1109
Manufacturer: WJ
File Size: 924.22 KB
Datasheet: SF1109-WJ.pdf
Description: (SF1109 - SF1114) PCS Receive Band Filters 1850-1910 MHz
Note: This datasheet PDF includes multiple part numbers: SF1110, SF1109.
Please refer to the document for exact specifications by model.

Features

* An eight pole ﬁlter with temperature compensation for consistent performance over the temperature.
* Filter cavities constructed of silver plated aluminum.
* Two coupler ports at 40dB and 50dB. Parameter Frequency Range Band A Band B Band C Impedance Input VSWR Output VSW
