1.5SMCJ54CA, 1.5SMCJ5.0-WON 1500W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

1.5SMCJ54CA Description

® WON-TOP ELECTRONICS 1.5SMCJ SERIES 1500W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR Pb .

1.5SMCJ54CA Features

* Glass Passivated Die Construction
* 1500W Peak Pulse Power Dissipation
* 5.0V
* 440V Standoff Voltage
* Uni- and Bi-Directional Versions Available
* Excellent Clamping Voltage
* Typical Response Time < 1nS
* Plastic Case Material has UL Flammability Classificati

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1.5SMCJ54CA, 1.5SMCJ5.0-WON. Please refer to the document for exact specifications by model.

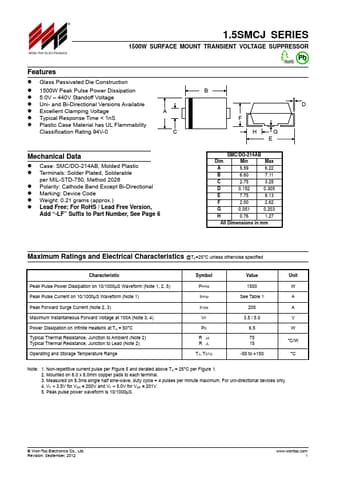

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
1.5SMCJ54CA, 1.5SMCJ5.0-WON
Manufacturer
WON-TOP
File Size
97.36 KB
Datasheet
1.5SMCJ5.0-WON-TOP.pdf
Description
1500W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
Note
This datasheet PDF includes multiple part numbers: 1.5SMCJ54CA, 1.5SMCJ5.0-WON.
Please refer to the document for exact specifications by model.
