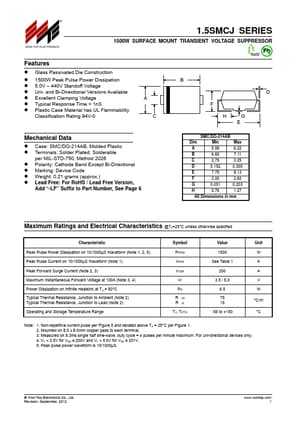

1.5SMCJ75 Features
* Glass Passivated Die Construction
* 1500W Peak Pulse Power Dissipation
* 5.0V
* 440V Standoff Voltage
* Uni- and Bi-Directional Versions Available
* Excellent Clamping Voltage
* Typical Response Time < 1nS
* Plastic Case Material has UL Flammability Classificati
Datasheet Details
1.5SMCJ75, 1.5SMCJ5.0-WON
WON-TOP
97.36 KB
1500w surface mount transient voltage suppressor.
This datasheet PDF includes multiple part numbers: 1.5SMCJ75, 1.5SMCJ5.0-WON.
Please refer to the document for exact specifications by model.
