1SMB5934B, 1SMB5913B-WON Datasheet - WON-TOP

1SMB5934B 3.0W SURFACE MOUNT ZENER DIODE

1SMB5934B Features

* Glass Passivated Die Construction

* 3.0W Power Dissipation

* 3.3V

* 200V Nominal Zener Voltage

* 5% Standard Vz Tolerance

* Low Inductance

* For Use in Voltage Regulator or Reference

* Plastic Case Material has UL Flammability Classification Rating 94V-0 1SMB59

1SMB5913B-WON-TOP.pdf

This datasheet PDF includes multiple part numbers: 1SMB5934B, 1SMB5913B-WON. Please refer to the document for exact specifications by model.

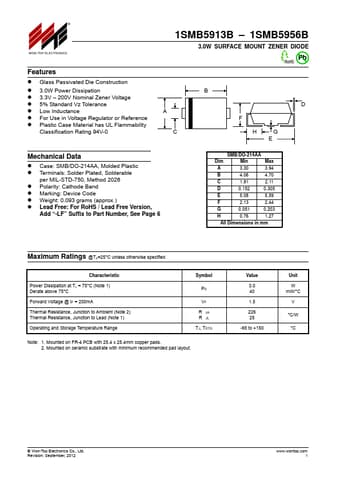

1SMB5934B Datasheet Preview Page 2 1SMB5934B Datasheet Preview Page 3

Datasheet Details

Part number:

1SMB5934B, 1SMB5913B-WON

Manufacturer:

WON-TOP

File Size:

91.35 KB

Description:

3.0w surface mount zener diode.

Note:

This datasheet PDF includes multiple part numbers: 1SMB5934B, 1SMB5913B-WON.
Please refer to the document for exact specifications by model.
