20KP52CA, 20KP20A-WON - 20000W TRANSIENT VOLTAGE SUPPRESSOR

Name: 20KP52CA
SKU: 20KP52CA-1291122

WON-TOP

The 20KP52CA by WON-TOP is a 20000W TRANSIENT VOLTAGE SUPPRESSOR. Below is the official datasheet preview.

Datasheet Details

Part number	20KP52CA, 20KP20A-WON
Manufacturer	WON-TOP
File Size	89.98 KB
Description	20000W TRANSIENT VOLTAGE SUPPRESSOR
Datasheet	20KP20A-WON-TOP.pdf
Note	This datasheet PDF includes multiple part numbers: 20KP52CA, 20KP20A-WON. Please refer to the document for exact specifications by model.

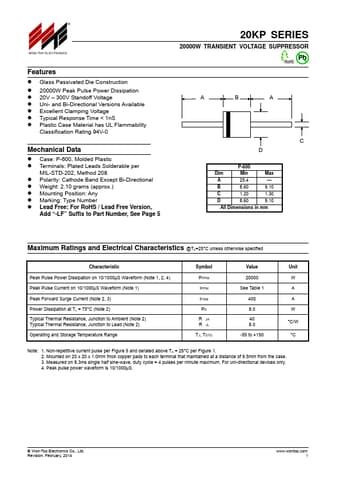

Additional preview pages of the 20KP52CA datasheet.

Glass Passivated Die Construction.
20000W Peak Pulse Power Dissipation.
20V.
300V Standoff Voltage.
Uni- and Bi-Directional Versions Available.
Excellent Clamping Voltage.
Typical Response Time < 1nS.
Plastic Case Material has UL Flammability Classification Rating 94V-0 Mechanical Data.
Case: P-600, Molded Plastic.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: Cathode Band Except Bi-Directional.
Weight:.
