20KP56A, 20KP20A-WON 20000W TRANSIENT VOLTAGE SUPPRESSOR

20KP56A Description

® WON-TOP ELECTRONICS .

20KP56A Features

* Glass Passivated Die Construction
* 20000W Peak Pulse Power Dissipation
* 20V
* 300V Standoff Voltage
* Uni- and Bi-Directional Versions Available
* Excellent Clamping Voltage
* Typical Response Time < 1nS
* Plastic Case Material has UL Flammability Classificati

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 20KP56A, 20KP20A-WON. Please refer to the document for exact specifications by model.

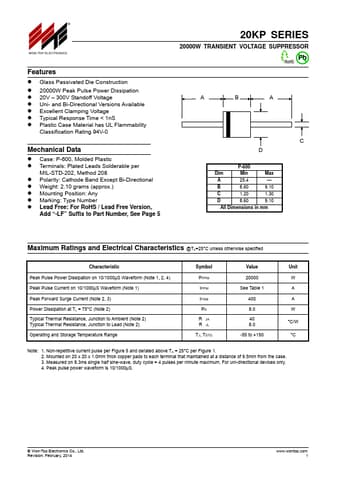

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
20KP56A, 20KP20A-WON
Manufacturer
WON-TOP
File Size
89.98 KB
Datasheet
20KP20A-WON-TOP.pdf
Description
20000W TRANSIENT VOLTAGE SUPPRESSOR
Note
This datasheet PDF includes multiple part numbers: 20KP56A, 20KP20A-WON.
Please refer to the document for exact specifications by model.
