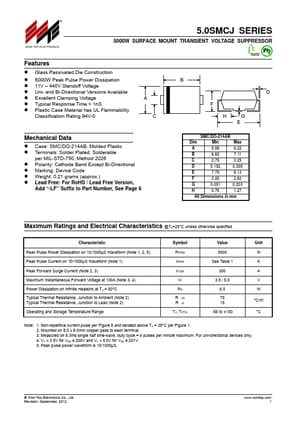

5.0SMCJ180C 5000W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

5.0SMCJ180C Features

* Glass Passivated Die Construction

* 5000W Peak Pulse Power Dissipation

* 11V

* 440V Standoff Voltage

* Uni- and Bi-Directional Versions Available

* Excellent Clamping Voltage

* Typical Response Time < 1nS

* Plastic Case Material has UL Flammability Classificatio

Datasheet Details

5.0SMCJ180C, 5.0SMCJ11-WON

WON-TOP

96.46 KB

5000w surface mount transient voltage suppressor.

This datasheet PDF includes multiple part numbers: 5.0SMCJ180C, 5.0SMCJ11-WON.
Please refer to the document for exact specifications by model.
