ER802F, ER800F-WON - 8.0A GLASS PASSIVATED ULTRAFAST RECTIFIER

Name: ER802F
SKU: ER802F-1272424

WON-TOP

The ER802F by WON-TOP is a 8.0A GLASS PASSIVATED ULTRAFAST RECTIFIER. Below is the official datasheet preview.

Datasheet Details

Part number	ER802F, ER800F-WON
Manufacturer	WON-TOP
File Size	41.99 KB
Description	8.0A GLASS PASSIVATED ULTRAFAST RECTIFIER
Datasheet	ER800F-WON-TOP.pdf
Note	This datasheet PDF includes multiple part numbers: ER802F, ER800F-WON. Please refer to the document for exact specifications by model.

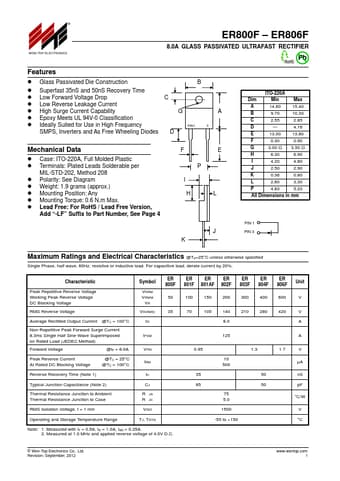

Additional preview pages of the ER802F datasheet.

Glass Passivated Die Construction.
Superfast 35nS and 50nS Recovery Time.
Low Forward Voltage Drop.
Low Reverse Leakage Current.
High Surge Current Capability.
Epoxy Meets UL 94V-0 Classification.
Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling Diodes C G D B PIN1 3 A Mechanical Data.
Case: ITO-220A, Full Molded Plastic.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: See Diagram.
