ER806, ER800-WON - 8.0A GLASS PASSIVATED SUPERFAST RECTIFIER

Name: ER806
SKU: ER806-1272420

WON-TOP

The ER806 by WON-TOP is a 8.0A GLASS PASSIVATED SUPERFAST RECTIFIER. Below is the official datasheet preview.

Datasheet Details

Part number	ER806, ER800-WON
Manufacturer	WON-TOP
File Size	41.94 KB
Description	8.0A GLASS PASSIVATED SUPERFAST RECTIFIER
Datasheet	ER800-WON-TOP.pdf
Note	This datasheet PDF includes multiple part numbers: ER806, ER800-WON. Please refer to the document for exact specifications by model.

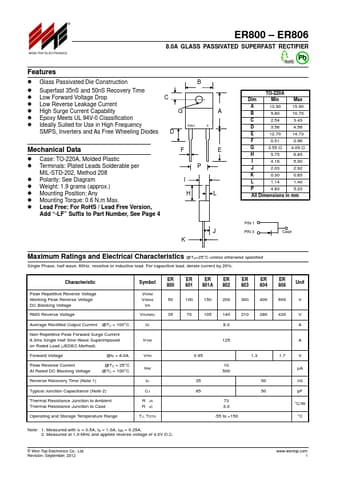

Additional preview pages of the ER806 datasheet.

Glass Passivated Die Construction.
Superfast 35nS and 50nS Recovery Time.
Low Forward Voltage Drop.
Low Reverse Leakage Current.
High Surge Current Capability.
Epoxy Meets UL 94V-0 Classification.
Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling Diodes C G D B PIN1 3 A Mechanical Data.
Case: TO-220A, Molded Plastic.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: See Diagram.
Weigh.
