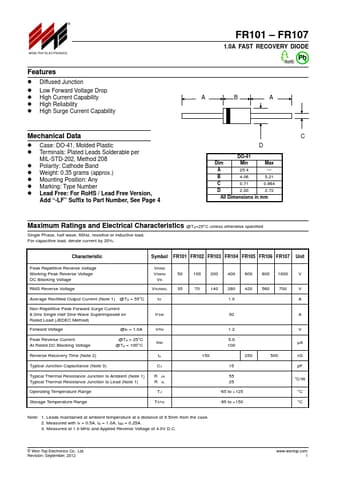

Features - Diffused Junction - Low Forward Voltage Drop - High Current Capability - High Reliability - High Surge Current Capability FR101 - FR107 1.0A FAST RECOVERY DIODE Pb Mechanical Data - Case: DO-41, Molded Plastic - Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 - Polarity: Cathode Band - Weight: 0.35 grams (approx.) - Mounting Position: Any - Marking: Type Number - Lead Free: For Ro HS / Lead Free Version, Add “-LF” Suffix to Part Number, See Page 4 DO-41 Dim Min Max A 25.4 - B 4.06 5.21 C 0.71 0.864 D 2.00 2.72 All Dimensions in mm Maximum Ratings and Electrical Characteristics @TA=25°C unless otherwise specified Single Phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. Characteristic Symbol FR101 FR102 FR103 FR104 FR105 FR106 FR107 Unit Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage VRRM VRWM 50 100...
