FR602 - 6.0A FAST RECOVERY DIODE

Download the FR602 datasheet PDF. This datasheet also covers the FR601-WON variant, as both devices belong to the same 6.0a fast recovery diode family and are provided as variant models within a single manufacturer datasheet.

Features

  • Diffused Junction.
  • Low Forward Voltage Drop.
  • High Current Capability.
  • High Reliability.
  • High Surge Current Capability FR601.
  • FR607 6.0A FAST.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (FR601-WON-TOP.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number FR602
Manufacturer WON-TOP
File Size 38.53 KB
Description 6.0A FAST RECOVERY DIODE
Datasheet download datasheet FR602 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FR602 6.0A Fast Recovery Silicon Rectifier SEP ELECTRONIC
FR602 FAST RECOVERY RECTIFIERS Sangdest Microelectronics
FR602 FAST RECOVER RECTIFIER MIC
FR602 6A Leaded Type Fast Rectifiers CITC
FR602 FAST RECOVERY RECTIFIER DIODES EIC

Other Datasheets by WON-TOP

Part Number Description
FR601 6.0A FAST RECOVERY DIODE
FR603 6.0A FAST RECOVERY DIODE
FR604 6.0A FAST RECOVERY DIODE
FR605 6.0A FAST RECOVERY DIODE
FR606 6.0A FAST RECOVERY DIODE

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

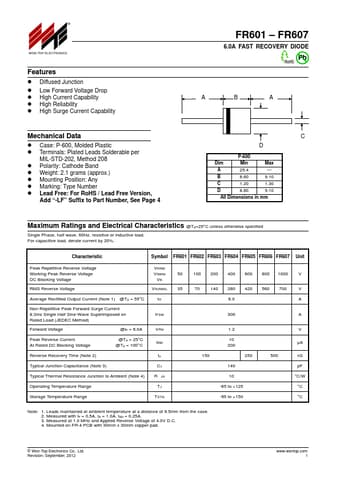

® WON-TOP ELECTRONICS Features  Diffused Junction  Low Forward Voltage Drop  High Current Capability  High Reliability  High Surge Current Capability FR601 – FR607 6.0A FAST RECOVERY DIODE Pb AB A Mechanical Data  Case: P-600, Molded Plastic  Terminals: Plated Leads Solderable per MIL-STD-202, Method 208  Polarity: Cathode Band  Weight: 2.1 grams (approx.)  Mounting Position: Any  Marking: Type Number  Lead Free: For RoHS / Lead Free Version, Add “-LF” Suffix to Part Number, See Page 4 D P-600 Dim Min Max A 25.4 — B 8.60 9.10 C 1.20 1.30 D 8.60 9.10 All Dimensions in mm C Maximum Ratings and Electrical Characteristics @TA=25°C unless otherwise specified Single Phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
