GBPC3504PS, GBPC3500PS-WON, 35A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER

® WON-TOP ELECTRONICS GBPC35PS SERIES 35A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER Pb .

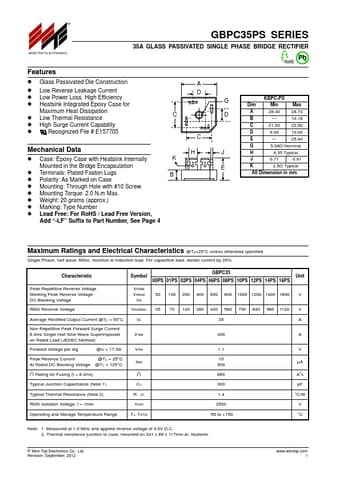

datasheet Preview Page 1 from Datasheet4u.com

GBPC3500PS-WON-TOP.pdf

GBPC3504PS Datasheet Preview — This datasheet PDF includes multiple part numbers: GBPC3504PS, GBPC3500PS-WON. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

GBPC3504PS, GBPC3500PS-WON

Manufacturer:

WON-TOP

File Size:

41.31 KB

Description:

35A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: GBPC3504PS, GBPC3500PS-WON.
Please refer to the document for exact specifications by model.

Features

* Glass Passivated Die Construction
* Low Reverse Leakage Current
* Low Power Loss, High Efficiency
* Heatsink Integrated Epoxy Case for Maximum Heat Dissipation
* Low Thermal Resistance
* High Surge Current Capability
* Recognized File # E157705 C Mechanical Data
