HER207, HER201-WON - 2.0A ULTRAFAST DIODE

HER207 Description

® WON-TOP ELECTRONICS .

HER207 Features

* Diffused Junction
* Low Forward Voltage Drop
* High Surge Current Capability
* High Reliability
* Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling Diodes Mechanical Data
* Case: DO-15, Molded Plastic
* Terminals: Plated Leads Solderable per

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HER207, HER201-WON. Please refer to the document for exact specifications by model.

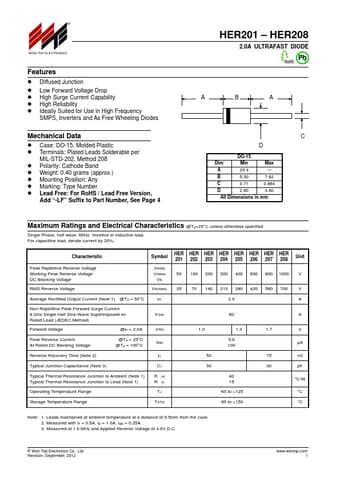

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HER207, HER201-WON
Manufacturer
WON-TOP
File Size
40.15 KB
Datasheet
HER201-WON-TOP.pdf
Description
2.0A ULTRAFAST DIODE
Note
This datasheet PDF includes multiple part numbers: HER207, HER201-WON.
Please refer to the document for exact specifications by model.
