KBPC5010

50A SINGLE PHASE BRIDGE RECTIFIER

KBPC5010 Features

* Diffused Junction

* Low Reverse Leakage Current

* Low Power Loss, High Efficiency

* Electrically Isolated Metal Case for Maximum Heat Dissipation

* Low Thermal Resistance

* High Surge Current Capability

* Recognized File # E157705 Mechanical Data

* Case: KBPC (Metal

KBPC5010 Datasheet (41.67 KB)

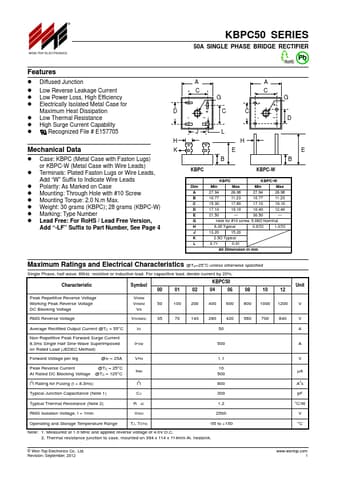

Preview of KBPC5010 PDF

Datasheet Details

Part number:

KBPC5010

Manufacturer:

WON-TOP

File Size:

41.67 KB

Description:

50a single phase bridge rectifier.
