MBRD530S - 5.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

Product Overview

WON-TOP

📥 Download Datasheet

MBRD530S 5.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER by WON-TOP - Datasheet Preview — Datasheet preview – MBRD530S

Datasheet Details

Part number	MBRD530S
Manufacturer	WON-TOP
File Size	41.11 KB
Description	5.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Datasheet	MBRD530S Datasheet
Note	This datasheet PDF includes multiple part numbers: MBRD530S, MBRD520-WON. Please refer to the document for exact specifications by model.

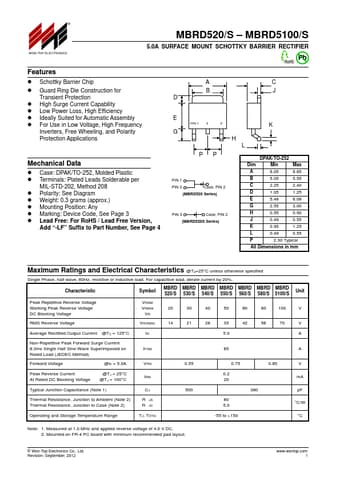

Additional preview pages of the MBRD530S datasheet.

Product details

Features

Schottky Barrier Chip.
Guard Ring Die Construction for Transient Protection.
High Surge Current Capability.
Low Power Loss, High Efficiency.
Ideally Suited for Automatic Assembly.
For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Polarity Protection.
