MURD330S - 3.0A SURFACE MOUNT GLASS PASSIVATED SUPERFAST DIODE

Product Overview

WON-TOP

📥 Download Datasheet

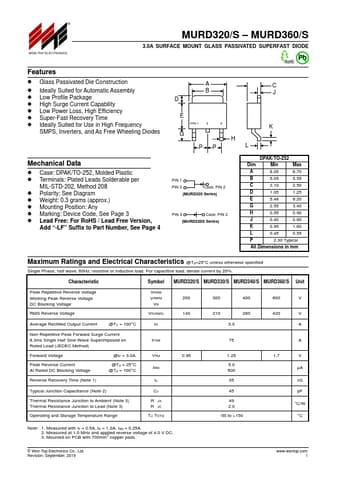

MURD330S 3.0A SURFACE MOUNT GLASS PASSIVATED SUPERFAST DIODE by WON-TOP - Datasheet Preview — Datasheet preview – MURD330S

Datasheet Details

Part number	MURD330S
Manufacturer	WON-TOP
File Size	40.15 KB
Description	3.0A SURFACE MOUNT GLASS PASSIVATED SUPERFAST DIODE
Datasheet	MURD330S Datasheet
Note	This datasheet PDF includes multiple part numbers: MURD330S, MURD320-WON. Please refer to the document for exact specifications by model.
Additional preview pages of the MURD330S datasheet.

Product details

Features

Glass Passivated Die Construction.
Ideally Suited for Automatic Assembly.
Low Profile Package.
High Surge Current Capability.
Low Power Loss, High Efficiency.
Super-Fast Recovery Time.
Ideally Suited for Use in High Frequency SMPS, Inverters, and As Free Wheeling Diodes Mechanical Data.
Case: DPAK/TO-252, Molded Plastic.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: See Diagram.
Weight: 0.3 grams (approx. ).
