P4SMAJ16A - 400W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

Download the P4SMAJ16A datasheet PDF. This datasheet also covers the P4SMAJ5.0-WON variant, as both devices belong to the same 400w surface mount transient voltage suppressor family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (P4SMAJ5.0-WON-TOP.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number P4SMAJ16A
Manufacturer WON-TOP
File Size 97.53 KB
Description 400W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
Datasheet download datasheet P4SMAJ16A Datasheet

Overview

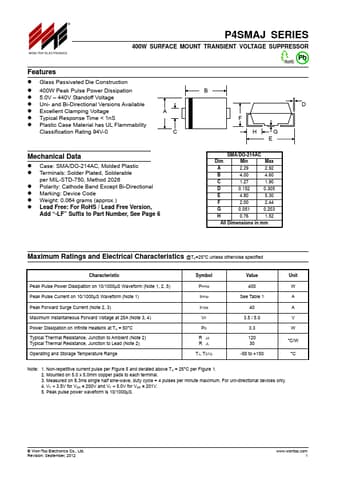

® WON-TOP ELECTRONICS P4SMAJ SERIES 400W SURFACE MOUNT TRANSIENT VOLTAGE.

Key Features

  • Glass Passivated Die Construction.
  • 400W Peak Pulse Power Dissipation.
  • 5.0V.
  • 440V Standoff Voltage.
  • Uni- and Bi-Directional Versions Available.
  • Excellent Clamping Voltage.
  • Typical Response Time < 1nS.
  • Plastic Case Material has UL Flammability Classification Rating 94V-0 A C B F H G E D Mechanical Data.
  • Case: SMA/DO-214AC, Molded Plastic.
  • Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026.
  • Polarity: Cathode Band Excep.
