PB1001G - 10A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER

This page provides the datasheet information for the PB1001G, a member of the PB1000G-WON 10A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER family.

Datasheet Summary

Features

  • Glass Passivated Die Construction.
  • High Current Capability.
  • High Case Dielectric Strength.
  • High Surge Current Capability.
  • Ideal for Printed Circuit Board.

📥 Download Datasheet

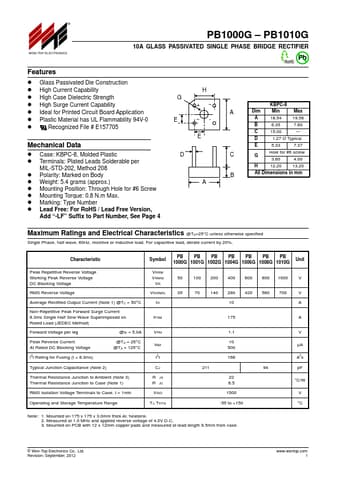

Datasheet preview – PB1001G

Datasheet Details

Part number PB1001G
Manufacturer WON-TOP
File Size 39.05 KB
Description 10A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER
Datasheet download datasheet PB1001G Datasheet
Additional preview pages of the PB1001G datasheet.

📁 Similar Datasheet

  • PB1001 - (PB1000 - PB1010) SILICON BRIDGE RECTIFIERS (Pan Jit International)
  • PB1000 - SILICON BRIDGE RECTIFIERS (Pan Jit International)
  • PB1002 - SILICON BRIDGE RECTIFIERS (Pan Jit International)
  • PB1004 - SILICON BRIDGE RECTIFIERS (Pan Jit International)
  • PB1006 - SILICON BRIDGE RECTIFIERS (Pan Jit International)
  • PB1008 - SILICON BRIDGE RECTIFIERS (Pan Jit International)
  • PB1010 - SILICON BRIDGE RECTIFIERS (Pan Jit International)
  • PB10FG-1205Z2 - 3KV ISOLATED 2 W REGULATED DUAL OUTPUT DIP16 (PEAK)
  • PB10FG-1212Z2 - 3KV ISOLATED 2 W REGULATED DUAL OUTPUT DIP16 (PEAK)
  • PB10FG-2405Z2 - 3KV ISOLATED 2 W REGULATED DUAL OUTPUT DIP16 (PEAK)
Other Datasheets by WON-TOP
  • PB1001 - 10A SINGLE PHASE BRIDGE RECTIFIER
  • PB1001S - 10A SINGLE PHASE BRIDGE RECTIFIER
  • PB1001SG - 10A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER
  • PB1000 - 10A SINGLE PHASE BRIDGE RECTIFIER
  • PB1000G - 10A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER
  • PB1000S - 10A SINGLE PHASE BRIDGE RECTIFIER
  • PB1000SG - 10A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER
  • PB1002 - 10A SINGLE PHASE BRIDGE RECTIFIER

Full PDF Text Transcription

Click to expand full text
® WON-TOP ELECTRONICS PB1000G – PB1010G 10A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER Pb Features  Glass Passivated Die Construction  High Current Capability  High Case Dielectric Strength  High Surge Current Capability  Ideal for Printed Circuit Board Application  Plastic Material has UL Flammability 94V-0  Recognized File # E157705 Mechanical Data H G +~ KBPC-8 A Dim Min Max E ~- A 18.54 19.56 B 6.35 7.60 C 15.00 — E D 1.27 Ø Typical E 5.33 7.37  Case: KBPC-8, Molded Plastic  Terminals: Plated Leads Solderable per MIL-STD-202, Method 208  Polarity: Marked on Body  Weight: 5.4 grams (approx.)  Mounting Position: Through Hole for #6 Screw  Mounting Torque: 0.8 N.m Max.
