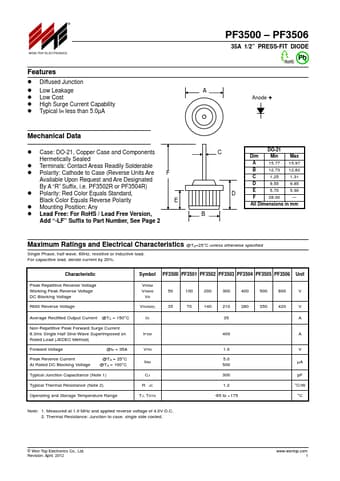

PF3502 Datasheet, Diode, WON-TOP

PF3502 Features

• Diode
• Diffused Junction
• Low Leakage
• Low Cost
• High Surge Current Capability
• Typical IR less than 5.0µA PF3500
    – PF3506 35A 1/

PDF File Details

Part number:

PF3502

Manufacturer:

WON-TOP

File Size:

27.89kb

Download:

📄 Datasheet

Description:

Press-fit diode.
