S2A, S2A-WON 2.0A SURFACE MOUNT GLASS PASSIVATED STANDARD DIODE

S2A Description

® WON-TOP ELECTRONICS S2A * S2M 2.0A SURFACE MOUNT GLASS PASSIVATED STANDARD DIODE Pb .

S2A Features

* Glass Passivated Die Construction
* Ideally Suited for Automatic Assembly
* Low Forward Voltage Drop
* Surge Overload Rating to 60A Peak
* Low Power Loss
* Built-in Strain Relief
* Plastic Case Material has UL Flammability Classification Rating 94V-0 A C B F HG E D

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: S2A, S2A-WON. Please refer to the document for exact specifications by model.

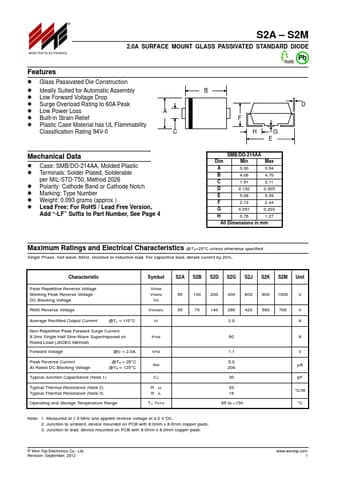

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S2A, S2A-WON
Manufacturer
WON-TOP
File Size
38.47 KB
Datasheet
S2A-WON-TOP.pdf
Description
2.0A SURFACE MOUNT GLASS PASSIVATED STANDARD DIODE
Note
This datasheet PDF includes multiple part numbers: S2A, S2A-WON.
Please refer to the document for exact specifications by model.
