S2GA, S2GA-WON Datasheet - WON-TOP

S2GA, S2GA-WON, 2.0A SURFACE MOUNT GLASS PASSIVATED STANDARD DIODE

® WON-TOP ELECTRONICS S2AA * S2MA 2.0A SURFACE MOUNT GLASS PASSIVATED STANDARD DIODE Pb .

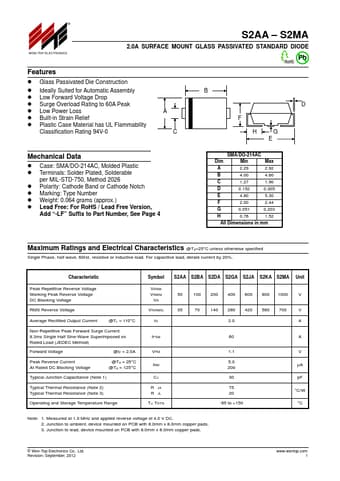

datasheet Preview Page 1 from Datasheet4u.com

S2GA-WON-TOP.pdf

S2GA Datasheet Preview — This datasheet PDF includes multiple part numbers: S2GA, S2GA-WON. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

S2GA, S2GA-WON

Manufacturer:

WON-TOP

File Size:

34.88 KB

Description:

2.0A SURFACE MOUNT GLASS PASSIVATED STANDARD DIODE

Note:

This datasheet PDF includes multiple part numbers: S2GA, S2GA-WON.
Please refer to the document for exact specifications by model.

Features

* Glass Passivated Die Construction
* Ideally Suited for Automatic Assembly
* Low Forward Voltage Drop
* Surge Overload Rating to 60A Peak
* Low Power Loss
* Built-in Strain Relief
* Plastic Case Material has UL Flammability Classification Rating 94V-0 A C B F HG E D
