S40D80C, S40D30C-WON, 40A DUAL SCHOTTKY BARRIER RECTIFIER

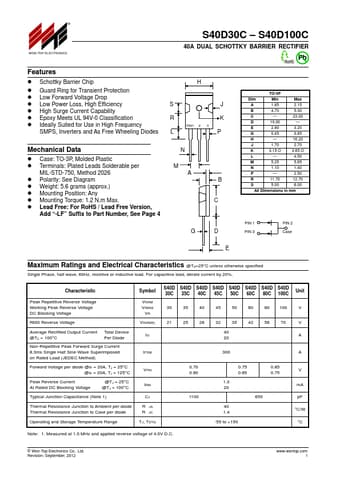

® WON-TOP ELECTRONICS S40D30C * S40D100C 40A DUAL SCHOTTKY BARRIER RECTIFIER Pb .

S40D30C-WON-TOP.pdf

S40D80C Datasheet Preview — This datasheet PDF includes multiple part numbers: S40D80C, S40D30C-WON. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

S40D80C, S40D30C-WON

Manufacturer:

WON-TOP

File Size:

42.61 KB

Description:

40A DUAL SCHOTTKY BARRIER RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: S40D80C, S40D30C-WON.
Please refer to the document for exact specifications by model.

Features

* Schottky Barrier Chip H
* Guard Ring for Transient Protection
* Low Forward Voltage Drop
* Low Power Loss, High Efficiency
* High Surge Current Capability
* Epoxy Meets UL 94V-0 Classification
* Ideally Suited for Use in High Frequency SJ RK PIN1 2 3 SMPS, Inverter
