S60D50C, S60D30C-WON - 60A DUAL SCHOTTKY BARRIER RECTIFIER

WON-TOP

📥 Download Datasheet

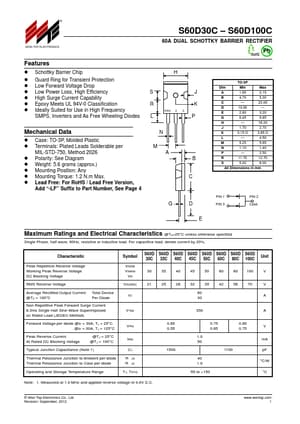

S60D50C Datasheet Preview — This datasheet PDF includes multiple part numbers: S60D50C, S60D30C-WON. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	S60D50C, S60D30C-WON
Manufacturer	WON-TOP
File Size	42.61 KB
Description	60A DUAL SCHOTTKY BARRIER RECTIFIER
Datasheet	S60D30C-WON-TOP.pdf
Note	This datasheet PDF includes multiple part numbers: S60D50C, S60D30C-WON. Please refer to the document for exact specifications by model.

S60D50C Product details

Features

Schottky Barrier Chip H.
Guard Ring for Transient Protection.
Low Forward Voltage Drop.
Low Power Loss, High Efficiency.
High Surge Current Capability.
Epoxy Meets UL 94V-0 Classification.
Ideally Suited for Use in High Frequency SJ RK PIN1 2 3 SMPS, Inverters and As Free Wheeling Diodes L P Mechanical Data.
Case: TO-3P, Molded Plastic.
Terminals: Plated Leads Solderable per MIL-STD-750, Method 2026.
Polarity: See Diagram.
Weight: 5.
