SB1020DC - 10A SURFACE MOUNT DUAL SCHOTTKY BARRIER RECTIFIER

Product Overview

WON-TOP

📥 Download Datasheet

SB1020DC 10A SURFACE MOUNT DUAL SCHOTTKY BARRIER RECTIFIER by WON-TOP - Datasheet Preview — Datasheet preview – SB1020DC

Datasheet Details

Part number	SB1020DC
Manufacturer	WON-TOP
File Size	42.29 KB
Description	10A SURFACE MOUNT DUAL SCHOTTKY BARRIER RECTIFIER
Datasheet	SB1020DC Datasheet
Note	This datasheet PDF includes multiple part numbers: SB1020DC, SB1020DC-WON. Please refer to the document for exact specifications by model.

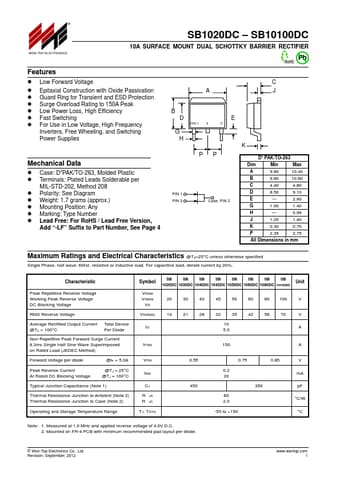

Additional preview pages of the SB1020DC datasheet.

Product details

Features

Low Forward Voltage.
Epitaxial Construction with Oxide Passivation.
Guard Ring for Transient and ESD Protection.
Surge Overload Rating to 150A Peak.
Low Power Loss, High Efficiency.
Fast Switching.
For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Switching Power Supplies Mechanical Data.
Case: D2PAK/TO-263, Molded Plastic.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: See Diagram.
Weight: 1.7.
