SB660 - 6.0A SCHOTTKY BARRIER RECTIFIER

Product Overview

WON-TOP

Part number	SB660
Manufacturer	WON-TOP
File Size	41.77 KB
Description	6.0A SCHOTTKY BARRIER RECTIFIER
Datasheet	SB660 Datasheet
Note	This datasheet PDF includes multiple part numbers: SB660, SB620-WON. Please refer to the document for exact specifications by model.

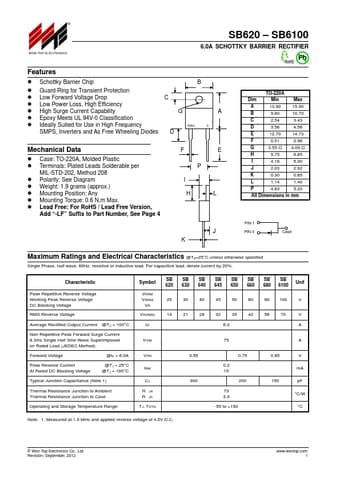

Additional preview pages of the SB660 datasheet.

Schottky Barrier Chip.
Guard Ring for Transient Protection.
Low Forward Voltage Drop.
Low Power Loss, High Efficiency.
High Surge Current Capability.
Epoxy Meets UL 94V-0 Classification.
Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling Diodes C G D B PIN1 3 A Mechanical Data.
Case: TO-220A, Molded Plastic.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: See Diagram.
Weight: 1.9 gra.
