SB845D

The SB845D is 8.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER designed by WON-TOP.

Product Overview

WON-TOP

📥 Download Datasheet

SB845D 8.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER by WON-TOP - Datasheet Preview — Datasheet preview – SB845D

Datasheet Details

Part number	SB845D, SB820D-WON
Manufacturer	WON-TOP
File Size	41.88 KB
Description	8.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Datasheet	SB820D-WON-TOP.pdf
Note	This datasheet PDF includes multiple part numbers: SB845D, SB820D-WON. Please refer to the document for exact specifications by model.

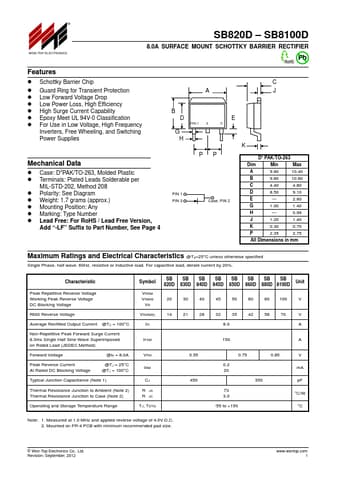

Additional preview pages of the SB845D datasheet.

Product details

Features

Schottky Barrier Chip.
Guard Ring for Transient Protection.
Low Forward Voltage Drop.
Low Power Loss, High Efficiency.
High Surge Current Capability.
Epoxy Meet UL 94V-0 Classification.
For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Switching Power Supplies Mechanical Data.
Case: D2PAK/TO-263, Molded Plastic.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: See Diagram.
Weight: 1.7 grams (appro.
