SB860D, SB820D-WON - 8.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

WON-TOP

📥 Download Datasheet

SB860D Datasheet Preview — This datasheet PDF includes multiple part numbers: SB860D, SB820D-WON. Please refer to the document for exact specifications by model.

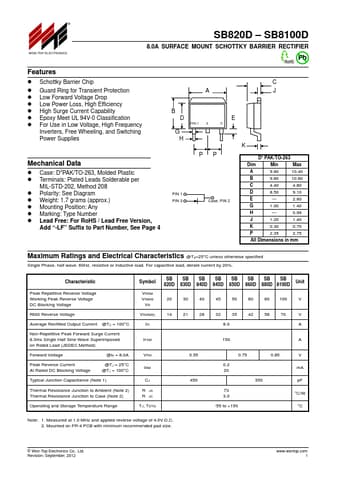

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SB860D, SB820D-WON
Manufacturer	WON-TOP
File Size	41.88 KB
Description	8.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Datasheet	SB820D-WON-TOP.pdf
Note	This datasheet PDF includes multiple part numbers: SB860D, SB820D-WON. Please refer to the document for exact specifications by model.

SB860D Product details

Features

Schottky Barrier Chip.
Guard Ring for Transient Protection.
Low Forward Voltage Drop.
Low Power Loss, High Efficiency.
High Surge Current Capability.
Epoxy Meet UL 94V-0 Classification.
For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Switching Power Supplies Mechanical Data.
Case: D2PAK/TO-263, Molded Plastic.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: See Diagram.
Weight: 1.7 grams (appro.
