SB880

The SB880 is 8.0A SCHOTTKY BARRIER RECTIFIER designed by WON-TOP.

Product Overview

WON-TOP

📥 Download Datasheet

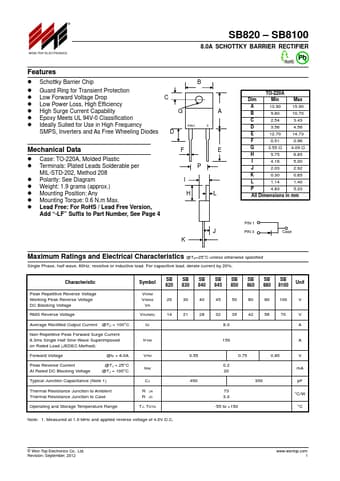

SB880 8.0A SCHOTTKY BARRIER RECTIFIER by WON-TOP - Datasheet Preview — Datasheet preview – SB880

Datasheet Details

Part number	SB880, SB820-WON
Manufacturer	WON-TOP
File Size	41.66 KB
Description	8.0A SCHOTTKY BARRIER RECTIFIER
Datasheet	SB820-WON-TOP.pdf
Note	This datasheet PDF includes multiple part numbers: SB880, SB820-WON. Please refer to the document for exact specifications by model.
Additional preview pages of the SB880 datasheet.

Product details

Features

Schottky Barrier Chip.
Guard Ring for Transient Protection.
Low Forward Voltage Drop.
Low Power Loss, High Efficiency.
High Surge Current Capability.
Epoxy Meets UL 94V-0 Classification.
Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling Diodes C G D B PIN1 3 A Mechanical Data.
Case: TO-220A, Molded Plastic.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: See Diagram.
Weight: 1.9 gra.
