SFR302 - 3.0A SOFT FAST RECOVERY RECTIFIER

Product Overview

WON-TOP

📥 Download Datasheet

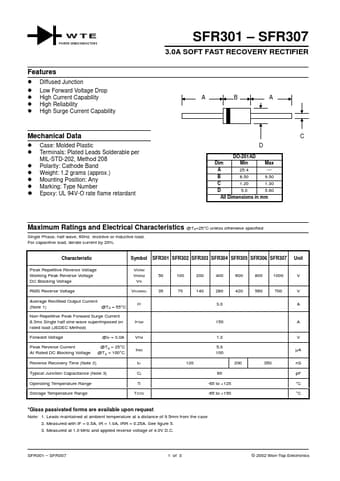

SFR302 3.0A SOFT FAST RECOVERY RECTIFIER by WON-TOP - Datasheet Preview — Datasheet preview – SFR302

Datasheet Details

Part number	SFR302
Manufacturer	WON-TOP
File Size	44.87 KB
Description	3.0A SOFT FAST RECOVERY RECTIFIER
Datasheet	SFR302 Datasheet
Note	This datasheet PDF includes multiple part numbers: SFR302, SFR301_Won. Please refer to the document for exact specifications by model.
Additional preview pages of the SFR302 datasheet.

Product details

Features

! Diffused Junction ! Low Forward Voltage Drop ! High Current Capability ! High Reliability ! High Surge Current Capability Mechanical Data ! Case: Molded Plastic ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 1.2 grams (approx. ) ! Mounting Position: Any ! Marking: Type Number ! Epoxy: UL 94V-O rate flame retardant SFR301.
SFR307 3.0A SOFT FAST.
