W TE
POWER SEMICONDUCTORS

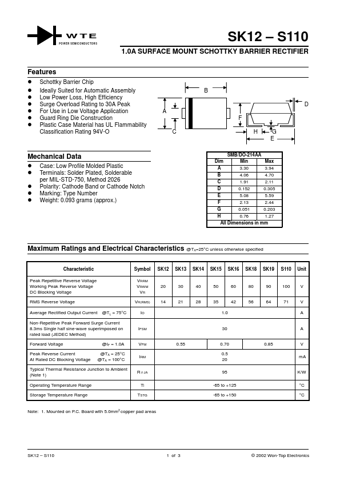

SK12 – S110
1.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Features
! Schottky Barrier Chip
! Ideally Suited for Automatic Assembly ! Low Power Loss, High Efficiency ! Surge Overload Rating to 30A Peak ! For Use in Low Voltage Application ! Guard Ring Die Construction ! Plastic Case Material has UL Flammability
Classification Rating 94V-O
A C
Mechanical Data
! Case: Low Profile Molded Plastic ! Terminals: Solder Plated, Solderable
per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type Number ! Weight: 0.093 grams (approx.)
B
F H
G E
SMB/DO-214AA
Dim Min Max
A 3.30 3.94
B 4.06 4.70
C 1.91 2.11
D
0.152
0.305
E 5.08 5.59
F 2.13 2.44
G
0.051
0.203
H 0.76 1.
