SML4729A, SML4728A-WON - 1.0W SURFACE MOUNT ZENER DIODE

WON-TOP

The SML4729A by WON-TOP is a 1.0W SURFACE MOUNT ZENER DIODE. Below is the official datasheet preview.

📥 Download Datasheet

SML4729A 1.0W SURFACE MOUNT ZENER DIODE by WON-TOP - Datasheet Preview — Official preview page of the SML4729A 1.0W SURFACE MOUNT ZENER DIODE datasheet (WON-TOP).

Datasheet Details

Part number	SML4729A, SML4728A-WON
Manufacturer	WON-TOP
File Size	90.66 KB
Description	1.0W SURFACE MOUNT ZENER DIODE
Datasheet	SML4728A-WON-TOP.pdf
Note	This datasheet PDF includes multiple part numbers: SML4729A, SML4728A-WON. Please refer to the document for exact specifications by model.

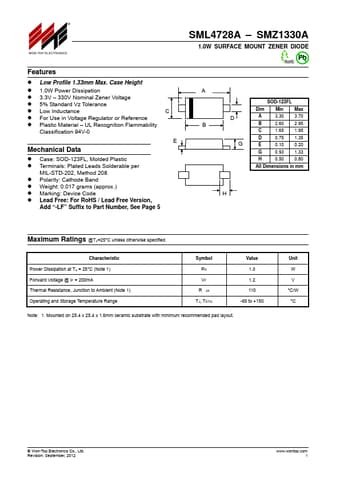

Additional preview pages of the SML4729A datasheet.

SML4729A Product details

Features

Low Profile 1.33mm Max. Case Height.
1.0W Power Dissipation.
3.3V.
330V Nominal Zener Voltage.
5% Standard Vz Tolerance.
Low Inductance C.
For Use in Voltage Regulator or Reference.
Plastic Material.
UL Recognition Flammability Classification 94V-0 E Mechanical Data.
Case: SOD-123FL, Molded Plastic.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: Cathode Band.
Weight: 0.017 grams (appr.
