SMZ1150A, SMZ1110A-WON - 1.0W SURFACE MOUNT ZENER DIODE

WON-TOP

📥 Download Datasheet

SMZ1150A Datasheet Preview — This datasheet PDF includes multiple part numbers: SMZ1150A, SMZ1110A-WON. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SMZ1150A, SMZ1110A-WON
Manufacturer	WON-TOP
File Size	87.46 KB
Description	1.0W SURFACE MOUNT ZENER DIODE
Datasheet	SMZ1110A-WON-TOP.pdf
Note	This datasheet PDF includes multiple part numbers: SMZ1150A, SMZ1110A-WON. Please refer to the document for exact specifications by model.

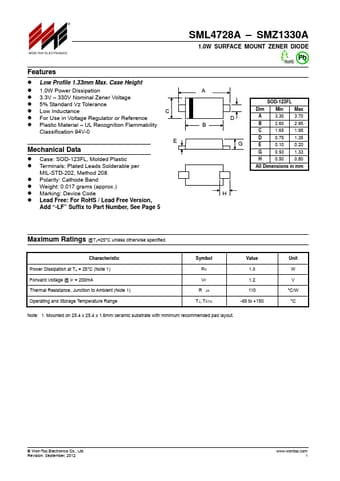

SMZ1150A Product details

Features

Low Profile 1.33mm Max. Case Height.
1.0W Power Dissipation.
3.3V.
330V Nominal Zener Voltage.
5% Standard Vz Tolerance.
Low Inductance C.
For Use in Voltage Regulator or Reference.
Plastic Material.
UL Recognition Flammability Classification 94V-0 E Mechanical Data.
Case: SOD-123FL, Molded Plastic.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: Cathode Band.
Weight: 0.017 grams (appr.
