SR1100, SR120-WON - 1.0A SCHOTTKY BARRIER DIODE

WON-TOP

📥 Download Datasheet

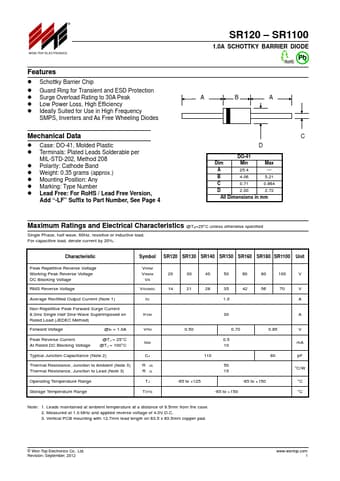

SR1100 Datasheet Preview — This datasheet PDF includes multiple part numbers: SR1100, SR120-WON. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: SR1100, SR120-WON
Manufacturer: WON-TOP
File Size: 40.36 KB
Datasheet: SR120-WON-TOP.pdf
Description: 1.0A SCHOTTKY BARRIER DIODE
Note: This datasheet PDF includes multiple part numbers: SR1100, SR120-WON.
Please refer to the document for exact specifications by model.

SR1100 Product details

Features

Schottky Barrier Chip.
Guard Ring for Transient and ESD Protection.
Surge Overload Rating to 30A Peak.
Low Power Loss, High Efficiency.
Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling Diodes Mechanical Data.
Case: DO-41, Molded Plastic.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: Cathode Band.
Weight: 0.35 grams (approx. ).
Mounting Position: Any.
Marking: Type Number.
Lead Fre.
