SR5100 - 5.0A SCHOTTKY BARRIER DIODE

WON-TOP

Download the SR5100 datasheet PDF. This datasheet also covers the SR5100-WON variant, as both devices belong to the same 5.0a schottky barrier diode family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

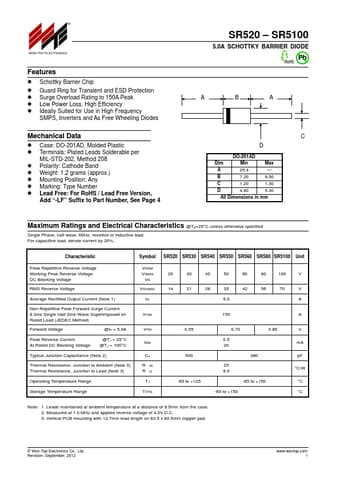

SR5100 5.0a schottky barrier diode by WON-TOP - Datasheet Preview — Note: The manufacturer provides a single datasheet file (SR5100-WON-TOP.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	SR5100
Manufacturer	WON-TOP
File Size	40.39 KB
Description	5.0A SCHOTTKY BARRIER DIODE
Datasheet	SR5100 Datasheet

Overview

® WON-TOP ELECTRONICS.

Key Features

Schottky Barrier Chip.
Guard Ring for Transient and ESD Protection.
Surge Overload Rating to 150A Peak.
Low Power Loss, High Efficiency.
Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling Diodes Mechanical Data.
Case: DO-201AD, Molded Plastic.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: Cathode Band.
Weight: 1.2 grams (approx. ).
Mounting Position: Any.
Marking: Type Number.
Lead.
