SS20100FL, SS2020FL-WON - 2.0A SURFACE MOUNT SCHOTTKY BARRIER DIODE

WON-TOP

📥 Download Datasheet

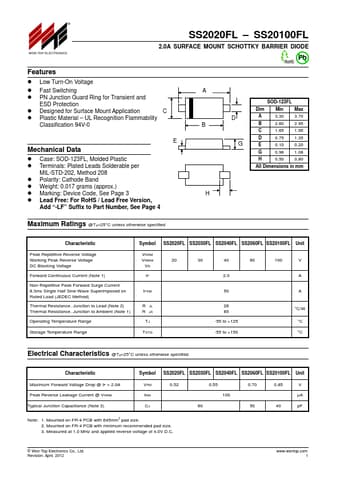

SS20100FL Datasheet Preview — This datasheet PDF includes multiple part numbers: SS20100FL, SS2020FL-WON. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: SS20100FL, SS2020FL-WON
Manufacturer: WON-TOP
File Size: 37.25 KB
Datasheet: SS2020FL-WON-TOP.pdf
Description: 2.0A SURFACE MOUNT SCHOTTKY BARRIER DIODE
Note: This datasheet PDF includes multiple part numbers: SS20100FL, SS2020FL-WON.
Please refer to the document for exact specifications by model.

SS20100FL Product details

Features

Low Turn-On Voltage.
Fast Switching.
PN Junction Guard Ring for Transient and ESD Protection.
Designed for Surface Mount Application C.
Plastic Material.
UL Recognition Flammability Classification 94V-0 Mechanical Data.
Case: SOD-123FL, Molded Plastic.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: Cathode Band.
Weight: 0.017 grams (approx. ).
Marking: Device Code, See Page 3.
Lead Free: For RoHS.
