U60D10C - 60A GLASS PASSIVATED DUAL SUPERFAST RECTIFIER

Product Overview

WON-TOP

Part number	U60D10C
Manufacturer	WON-TOP
File Size	42.63 KB
Description	60A GLASS PASSIVATED DUAL SUPERFAST RECTIFIER
Datasheet	U60D10C Datasheet
Note	This datasheet PDF includes multiple part numbers: U60D10C, U60D05C-WON. Please refer to the document for exact specifications by model.

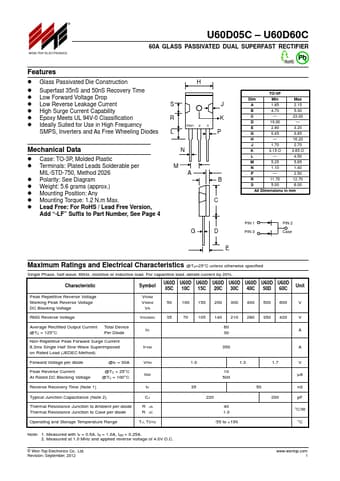

Additional preview pages of the U60D10C datasheet.

Glass Passivated Die Construction H.
Superfast 35nS and 50nS Recovery Time.
Low Forward Voltage Drop.
Low Reverse Leakage Current.
High Surge Current Capability.
Epoxy Meets UL 94V-0 Classification.
Ideally Suited for Use in High Frequency SJ RK PIN1 2 3 SMPS, Inverters and As Free Wheeling Diodes L P Mechanical Data.
Case: TO-3P, Molded Plastic.
Terminals: Plated Leads Solderable per MIL-STD-750, Method 2026.
Polarity: See Diagram.
