US1A, US1A-WON 1.0A SURFACE MOUNT GLASS PASSIVATED ULTRAFAST DIODE

US1A Description

® WON-TOP ELECTRONICS US1A * US1M 1.0A SURFACE MOUNT GLASS PASSIVATED ULTRAFAST DIODE Pb .

US1A Features

* Glass Passivated Die Construction
* Ideally Suited for Automatic Assembly
* Low Forward Voltage Drop, High Efficiency
* Surge Overload Rating to 30A Peak
* Low Power Loss A
* Ultra-Fast Recovery Time
* Ideally Suited for Use in High Frequency SMPS, Inverters an

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: US1A, US1A-WON. Please refer to the document for exact specifications by model.

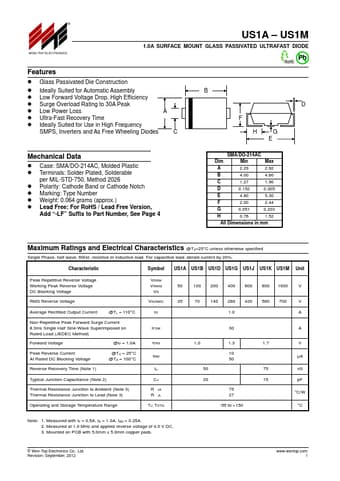

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
US1A, US1A-WON
Manufacturer
WON-TOP
File Size
39.14 KB
Datasheet
US1A-WON-TOP.pdf
Description
1.0A SURFACE MOUNT GLASS PASSIVATED ULTRAFAST DIODE
Note
This datasheet PDF includes multiple part numbers: US1A, US1A-WON.
Please refer to the document for exact specifications by model.
