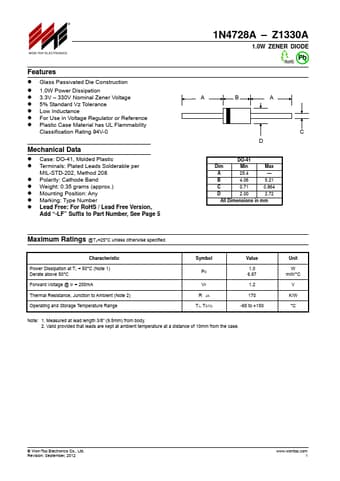

Z1300A, Z1300A-WON - 1.0W ZENER DIODE

WON-TOP

Datasheet Details

Part number: Z1300A, Z1300A-WON
Manufacturer: WON-TOP
File Size: 88.97 KB
Datasheet: Z1300A-WON-TOP.pdf
Description: 1.0W ZENER DIODE
Note: This datasheet PDF includes multiple part numbers: Z1300A, Z1300A-WON.
Please refer to the document for exact specifications by model.

Glass Passivated Die Construction.
1.0W Power Dissipation.
3.3V.
330V Nominal Zener Voltage.
5% Standard Vz Tolerance.
Low Inductance.
For Use in Voltage Regulator or Reference.
Plastic Case Material has UL Flammability Classification Rating 94V-0 Mechanical Data.
Case: DO-41, Molded Plastic.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: Cathode Band.
Weight: 0.35 grams (approx. ).
Mounting Position:.
