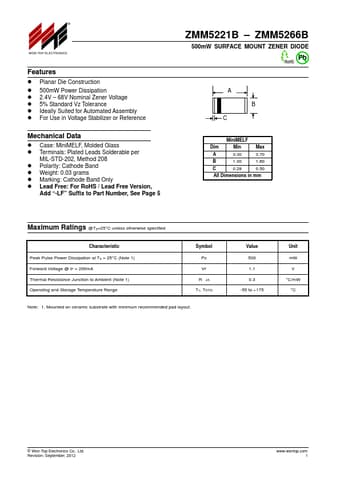

Part number:
ZMM5221B
Manufacturer:
WON-TOP
File Size:
44.66 KB
Description:
500mw surface mount zener diode.
* Planar Die Construction
* 500mW Power Dissipation
* 2.4V
* 68V Nominal Zener Voltage
* 5% Standard Vz Tolerance
* Ideally Suited for Automated Assembly
* For Use in Voltage Stabilizer or Reference Mechanical Data
* Case: MiniMELF, Molded Glass
* Terminals: P
ZMM5221B
WON-TOP
44.66 KB
500mw surface mount zener diode.
