ZMM55C3V3, ZMM55C2V4-WON 500mW SURFACE MOUNT ZENER DIODE

ZMM55C3V3 Description

® WON-TOP ELECTRONICS .

ZMM55C3V3 Features

* Planar Die Construction
* 500mW Power Dissipation
* 2.4V
* 75V Nominal Zener Voltage
* 5% Standard Vz Tolerance
* Ideally Suited for Automated Assembly
* For Use in Voltage Stabilizer or Reference Mechanical Data
* Case: MiniMELF, Molded Glass
* Terminals: P

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ZMM55C3V3, ZMM55C2V4-WON. Please refer to the document for exact specifications by model.

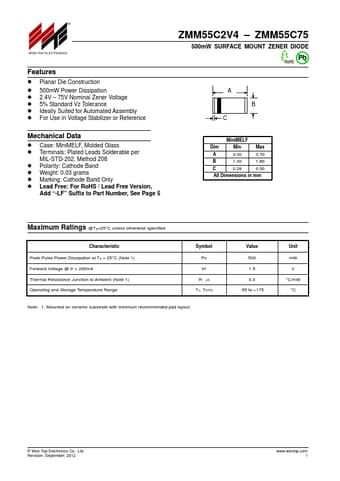

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ZMM55C3V3, ZMM55C2V4-WON
Manufacturer
WON-TOP
File Size
42.90 KB
Datasheet
ZMM55C2V4-WON-TOP.pdf
Description
500mW SURFACE MOUNT ZENER DIODE
Note
This datasheet PDF includes multiple part numbers: ZMM55C3V3, ZMM55C2V4-WON.
Please refer to the document for exact specifications by model.
