ZMM55C62, ZMM55C2V4-WON - 500mW SURFACE MOUNT ZENER DIODE

WON-TOP

The ZMM55C62 by WON-TOP is a 500mW SURFACE MOUNT ZENER DIODE. Below is the official datasheet preview.

📥 Download Datasheet

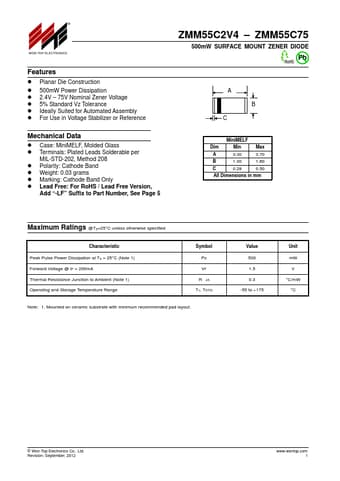

ZMM55C62 500mW SURFACE MOUNT ZENER DIODE by WON-TOP - Datasheet Preview — Official preview page of the ZMM55C62 500mW SURFACE MOUNT ZENER DIODE datasheet (WON-TOP).

Datasheet Details

Part number	ZMM55C62, ZMM55C2V4-WON
Manufacturer	WON-TOP
File Size	42.90 KB
Description	500mW SURFACE MOUNT ZENER DIODE
Datasheet	ZMM55C2V4-WON-TOP.pdf
Note	This datasheet PDF includes multiple part numbers: ZMM55C62, ZMM55C2V4-WON. Please refer to the document for exact specifications by model.
Additional preview pages of the ZMM55C62 datasheet.

ZMM55C62 Product details

Features

Planar Die Construction.
500mW Power Dissipation.
2.4V.
75V Nominal Zener Voltage.
5% Standard Vz Tolerance.
Ideally Suited for Automated Assembly.
For Use in Voltage Stabilizer or Reference Mechanical Data.
Case: MiniMELF, Molded Glass.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: Cathode Band.
Weight: 0.03 grams.
Marking: Cathode Band Only.
Lead Free: For RoHS / Lead Free Version, Add “-LF” Suffi.
