WPPC-D11084, WPPC-D11084ASS SSOP Photo Coupler

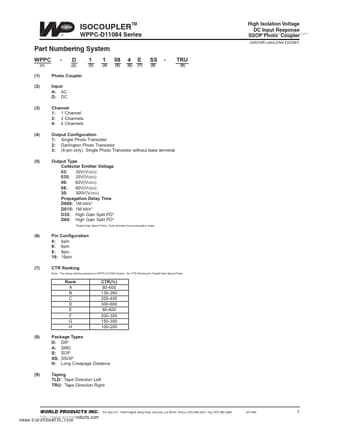

📥 Download Datasheet  Datasheet Preview Page 1

Description

ISOCOUPLERTM  WPPC-D11084 Series High Isolation Voltage DC Input Response www.DataSheet4U.com SSOP Photo Coupler USR/CNR Listed (File# E223387) Pa.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: WPPC-D11084, WPPC-D11084ASS. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
WPPC-D11084, WPPC-D11084ASS
Manufacturer
WORLD PRODUCTS
File Size
93.92 KB
Datasheet
WPPC-D11084ASS_WORLDPRODUCTS.pdf
Description
SSOP Photo Coupler
Note
This datasheet PDF includes multiple part numbers: WPPC-D11084, WPPC-D11084ASS.
Please refer to the document for exact specifications by model.

Features

* 1. High isolation voltage (BV = 2500 VRMS) 2. Small thin package (4-pin SSOP, Pin pitch 1.27mm) 3. High collector to emitter voltage (VCEO = 80V) 4. High speed switching (tr = 3us typ. , tf = 5us typ. ) 5. Available package types: SSOP(shown). Outside Dimension: Unit (mm) Part Number D1108 E06 Appl

Applications

* 1. Programmable logic controllers. 2. Measuring intstruments. 0.1 ± 0.1 0.254 ± 0.05 4.40 Date Code (Example: E = 2004, 06 = Week 6) 2.7 ± 0.3 3. Power supply. 4. Hybrid IC. 5. Gaming machines. 2.1 Max. 1.95 0.40 1.27 0.5 ± 0.3 7.00 ± 0.4 TOLERANCE: ±0.2mm Schematic: Top View 1 2 4 3 1. 2.
