WPE15VD3ULA, WPE3V3D3ULA, TVS ARRAY

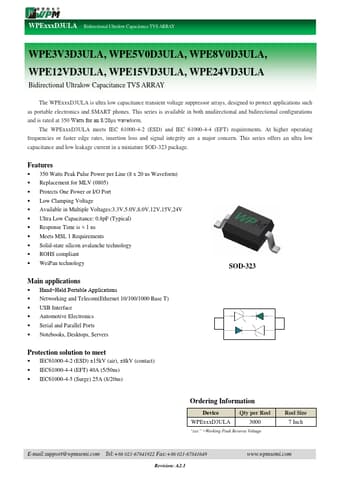

WPExxxD3ULA Bidirectional Ultralow Capacitance TVS ARRAY WPE3V3D3ULA, WPE5V0D3ULA, WPE8V0D3ULA, WPE12VD3ULA, WPE15VD3ULA, WPE24VD3ULA Bidirectional U.

WPE3V3D3ULA-WPM.pdf

WPE15VD3ULA Datasheet Preview — This datasheet PDF includes multiple part numbers: WPE15VD3ULA, WPE3V3D3ULA. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

WPE15VD3ULA, WPE3V3D3ULA

Manufacturer:

WPM

File Size:

375.07 KB

Description:

TVS ARRAY

Note:

This datasheet PDF includes multiple part numbers: WPE15VD3ULA, WPE3V3D3ULA.
Please refer to the document for exact specifications by model.

Features

* 350 Watts Peak Pulse Power per Line (8 x 20 us Waveform)
* Replacement for MLV (0805)
* Protects One Power or I/O Port
* Low Clamping Voltage
* Available in Multiple Voltages:3.3V,5.0V,8.0V,12V,15V,24V
* Ultra Low

Applications

* such as portable electronics and SMART phones. This series is available in both unidirectional and bidirectional configurations and is rated at 350 Watts for an 8/20μs waveform. The WPExxxD3ULA meets IEC 61000-4-2 (ESD) and IEC 61000-4-4 (EFT) requirements. At higher operating frequencies or faster
