DHE020N03

210A 30V N-channel Enhancement Mode Power MOSFET

📥 Download PDF (1.18 MB)

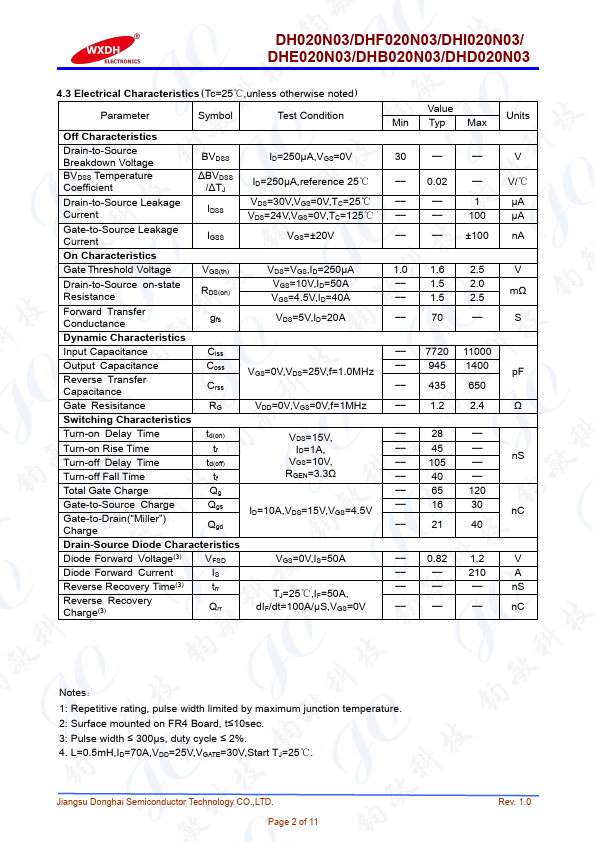

DHE020N03 Datasheet Preview Page 1 — Preview of DHE020N03 Datasheet

Datasheet Details

Part number:

DHE020N03

Manufacturer:

WXDH

File Size:

1.18 MB

Download:

📄 Download DHE020N03 Datasheet PDF

Description:

210a 30v n-channel enhancement mode power mosfet.
DH020N03/DHF020N03/DHI020N03/ DHE020N03/DHB020N03/DHD020N03 210A 30V N-channel Enhancement Mode Powe.
These N-channel enhanced vdmosfets used advanced trench technology design, provided excellent Rdson .

✔ DHE020N03 Features

Fast switching
Low on resistance(Rdson≤2.0mΩ)
Low gate charge(Typ: 65nC)
Low reverse transfer capacitances(Typ: 435pF)
100% single pulse avalanche energy test

✔ DHE020N03 Application

SPMS applications TO-220C TO-220F TO-262
Load switch
Power management
BMS System TO-263 4 Elect
