WD6208N Datasheet - Wade Semiconductor

WD6208N REVERSIBLE MOTOR DRIVER

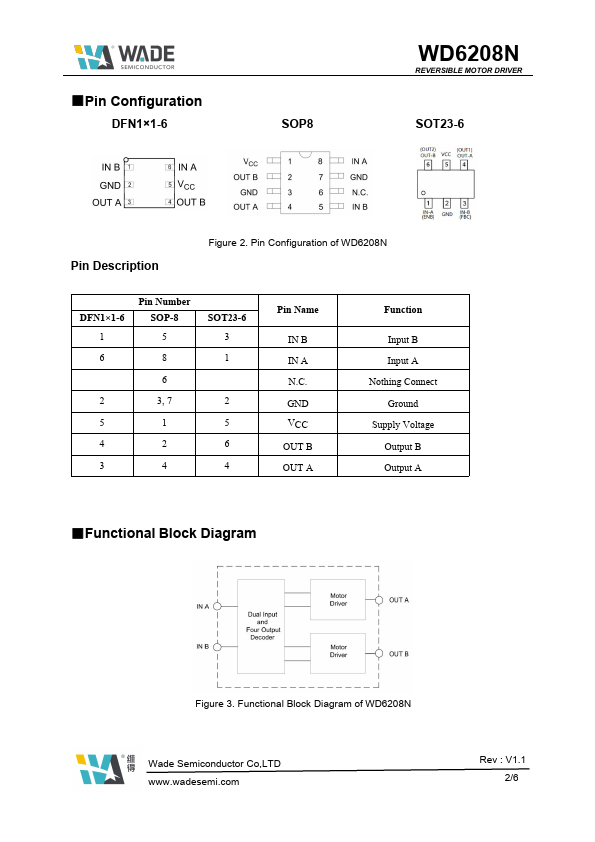

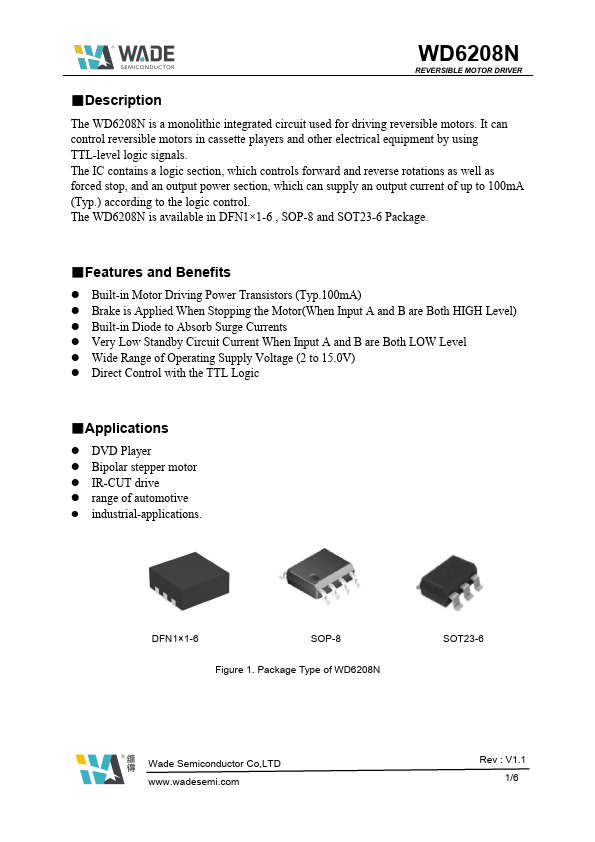

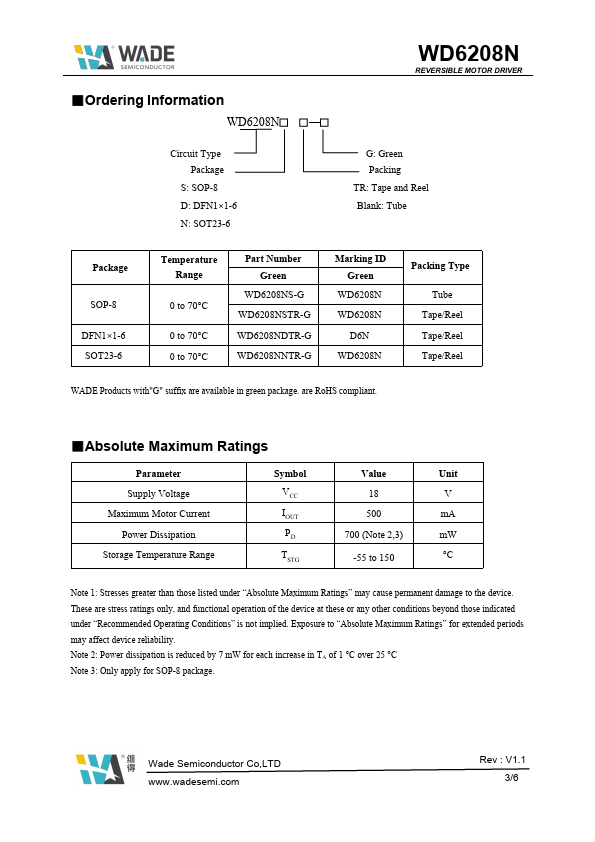

The WD6208N is a monolithic integrated circuit used for driving reversible motors. It can control reversible motors in cassette players and other electrical equipment by using TTL-level logic signals. The IC contains a logic section, which controls forward and reverse rotations as well as forced sto.

WD6208N Features

* Built-in Motor Driving Power Transistors (Typ.100mA)

* Brake is Applied When Stopping the Motor(When Input A and B are Both HIGH Level)

* Built-in Diode to Absorb Surge Currents

* Very Low Standby Circuit Current When Input A and B are Both LOW Level

* Wide Range of Operating S

WD6208N-WadeSemiconductor.pdf

Preview of WD6208N PDF
WD6208N Datasheet Preview Page 2 WD6208N Datasheet Preview Page 3

Datasheet Details

Part number:

WD6208N

Manufacturer:

Wade Semiconductor

File Size:

693.40 KB

Description:

Reversible motor driver.
