IBD1515-DIL

6000 VDC Input / Ouput Solation

IBD1515-DIL Features

* extremely high Input/Output isolation in a miniature 1.5 watt package. Designed with a low profile and 24 pin DIP compatibility, the IB fits easily into PC board assemblies. High efficiency (>75% typical) is a result of state-of-the-art circuitry with an oscillator frequency greater than 50kHz. SPE

IBD1515-DIL Datasheet (83.83 KB)

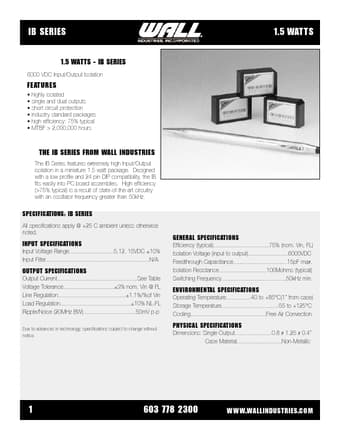

Preview of IBD1515-DIL PDF

Datasheet Details

Part number:

IBD1515-DIL

Manufacturer:

Wall Industries

File Size:

83.83 KB

Description:

6000 vdc input / ouput solation.
IB SERIES 1.5 WATTS 1.5 WATTS - IB SERIES 6000 VDC Input/Output Isolation F E AT U R E S

* highly isolated

* single and dual outputs.
