WR06X

(WR0xX) General Purpose Chip Resistors

WR06X General Description

The resistors are constructed in a high grade ceramic body (aluminum oxide). Internal metal electrodes are added at each end and connected by a resistive paste that is applied to the top surface of the substrate. The composition of the paste is adjusted to give the approximate resistance required an.

WR06X Datasheet (1.02 MB)

Preview of WR06X PDF

Datasheet Details

Part number:

WR06X

Manufacturer:

Walsin Technology

File Size:

1.02 MB

Description:

(wr0xx) general purpose chip resistors.

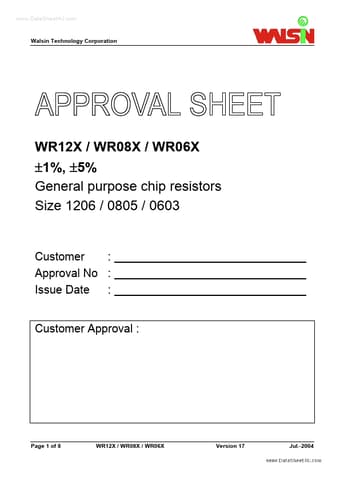

www.DataSheet4U.com Walsin Technology Corporation WR12X / WR08X / WR06X ±1%, ±5% General purpose chip resistors Size 1206 / 0805 / 0603 Customer : .
