WMA1T5AE Datasheet - WanTcom

WMA1T5AE 1.5T LOW NOISE PRE-AMPLIFIER

Applications * For 50 Ohm Source Impedance With its low input impedance, WMA1T5AE * 1.5T Frequency of 63.8 MHz is designed for 50 Ohm source impedance * 1.5 Ohm Input Impedance * 0.5 dB Noise Figure * 30.0 dBm Max PIN * 24.0 dBm Output IP3 * 28.0 dB Gain * 8.0 dB.

WMA1T5AE-WanTcom.pdf

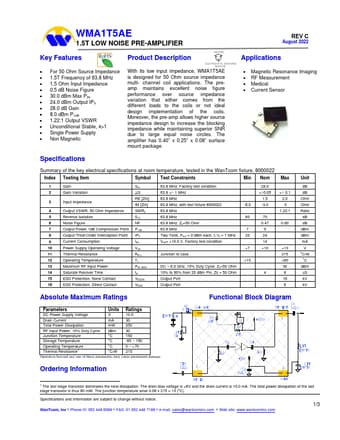

Preview of WMA1T5AE PDF
WMA1T5AE Datasheet Preview Page 2 WMA1T5AE Datasheet Preview Page 3

Datasheet Details

Part number:

WMA1T5AE

Manufacturer:

WanTcom

File Size:

168.26 KB

Description:

1.5t low noise pre-amplifier.
